MultiSystem
The self-contained and semi-automatic Alfa Laval MultiSystem in a sanitary design is a flexible and multipurpose membrane filtration system for food processing applications. It works with MF, UF, NF and RO cross-flow filtration processes and operates in both batch, semi-batch and continuous modes. The Alfa Laval MultiSystem fits the entire range of 8.0" spiral wound membranes available from Alfa Laval. This includes also the high temperature and pH tolerant Alfa Laval pHt™ membranes.
Flexible MultiSystem in space-saving design for small-scale membrane filtration production and realistic process scale-up within food applications
- Product capacity from few 100 l/h up to 6 m³/h
- Flexible membrane areas from 65 m² to 240 m²
- Automatic PLC-based control of batch, semi-batch and continuous processes incl. data logging and easy data access by USB connection
- Ideal for food processing applications incl. recovery of condensates water and generating of purified RO quality water for diafiltration
- All main components, including unique high-performance spiral membranes, manufactured by Alfa Laval
With more than 2500 installations across the world, Alfa Laval has helped many companies with membrane technology. Whether you are switching from a high-energy, traditional method or looking to optimize your existing membrane system, our industry know-how and external global sales and service network will help you find the perfect solution to meet your specific business needs.
Applications
With a sanitary design the Alfa Laval MultiSystem for cross-flow membrane filtration is ideal for a broad range of food applications ranging from purification of proteins, sugar & starch, concentration of peptides and amino streams, recovery of water from condensates - or generating of RO quality water for diafiltration
Sådan fungerer det

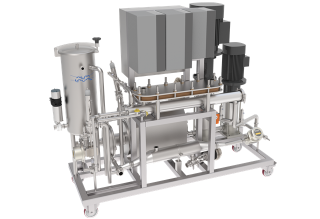

The sanitary Alfa Laval MultiSystem is a semi-automatic and fully integrated skid mounted membrane filtration system which can be easily connected to the up-and downstream unit operations in the process, minimizing installation time and cost.
The basic Alfa Laval MultiSystem comes with all necessary sanitary components such as pumps, housings, feed/CIP tank, valves, heat exchangers, transmitters, fittings and control panel.
The PLC-based control system secures automatic control of production sequences including flow, VCF (Volumetric Concentration Factor), temperature, tank level, pressure and diafiltration volume or ratio control.
Internal data logging is easily extractable via USB.
Options
The basic Alfa Laval MultiSystem is further available with the optional equipment:
- One extra housing to increase the spiral membrane area by 50%
- Online monitoring and data collection
- Remote monitoring and control (VNC) and collection via direct connection on Profinet or Modem connections (secured VPN)

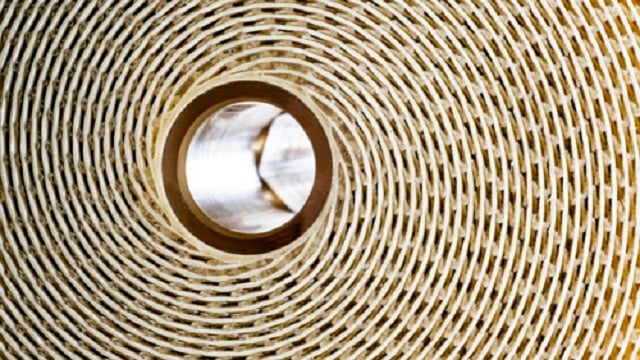

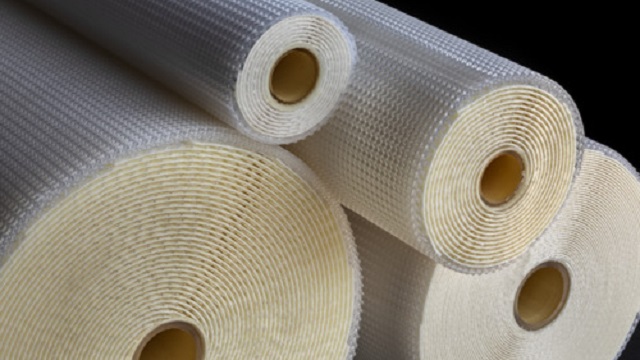

A broad choise of Alfa Laval spiral membranes
Enestående membranteknologi og membranfiltreringsudstyr
Optimale membranfiltreringsløsninger stammer normalt fra afprøvninger i lille målestok. Det er her, du fastlægger procesmulighed, bestemmer designdata til opskalering, optimerer eksisterende produktionslinjer eller endda udfører forarbejdning i lille målestok.
Når det drejer sig om membranfiltreringsprocesser, er Alfa Laval perfekt i en perfekt position til at hjælpe med disse eksperimenter. Vores erfaring med membranløsninger går næsten så langt tilbage som selve membranteknologien og strækker sig over alle de almindelige typer filtrering. I dag udvikler, fremstiller, installerer og servicerer vi membranløsninger og systemer selv. Så med Alfa Laval drager du nytte af den uovertrufne knowhow og erfaring med membranteknologi, der følger med forståelsen af hvert trin i processen, og vores medarbejderes unikke evne til at imødekomme dine behov på ethvert trin i udvikling af membranfiltreringsudstyr.
Læs mere om membranfiltreringsprocesser
Hvordan kan vi hjælpe dig?
Lad os drøfte, hvordan vi kan hjælpe dig med at opnå produkter af topkvalitet, der opfylder de mange strenge krav fra både forbrugere og offentlige myndigheder.

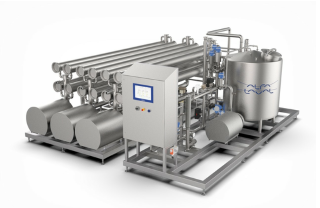

Related products
Compliances
All materials used for the production of Alfa Laval membranes, in both spiral-wound and flat-sheet membrane designs and configurations, comply with EU Regulation (EC) 1935/2004, EU Regulation 10/2011, EU Regulation (EC) 2023/2006 and FDA regulations (CFR) Title 21. The membranes are thus suitable for use within food and pharmaceutical processing applications.
These compliance also extend to the equipment and fittings related to membrane operations, including items such as plate-and-frame units, element housings and pumps.
