IndiTop

Straightforward and easy to use, IndiTop provides accurate and reliable information about the status of most standard sanitary valves used in the dairy, food and beverage, and biopharm industries.

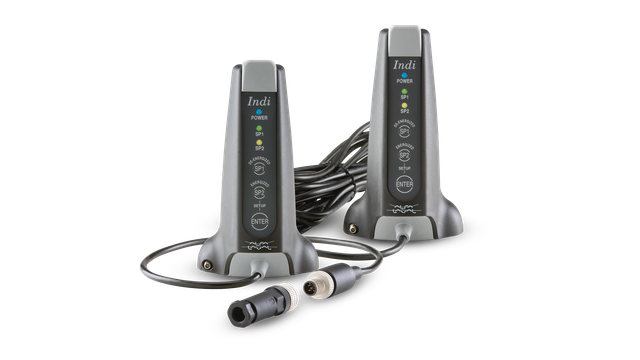

inditop front 640x360

Accurate valve indication

For straightforward real-time monitoring, the IndiTop provides accurate visual indication of valve position and status as well as power-supply status through the use of light-emitting diodes. Its universal fit makes it a natural choice for valve indication of any Alfa Laval air-actuated sanitary valve.

With its streamlined, low-maintenance design, IndiTop is ideal for use in new and existing plants. IndiTop does not use any solenoid valves, but relies on the use of basic  indication signals. Compatibility with all major PLC system having a digital PNP/NPN interface.

Valve cluster illustration caption: Combining the use of automated ThinkTop control heads and IndiTop valve position indicators provides a smart solution for cost-effective control of your plant.

Effective valve indicator

Reliable valve indication based on proven ThinkTop design contribute to process safety:

  • No-touch, set-and-forget sensor system.Detects both the condition and position of the valve stem with an accuracy of ± 1 mm. Set-up parameters are stored but, for greater flexibility and ease of operation, can easily be re-programmed.
  • Pre-set tolerance band. No manual adjustment of feedback sensors is required. Valve tolerance bands with preconfigured default setting of ±5mm ensure operational reliability on any Alfa Laval sanitary valve.
  • Two PNP/NPN feedback signals offer basic functionality to indicate energized and de-energized main valve positions. The PNP/NPN interface are selected by connecting one appointed wire to either the plus or minus terminal.

Sturdy and durable

With its hardy hygienic design, IndiTop ensures the effects of physical impact, pollution, frost, UV radiation and temperatures up to 80°C while supporting continuous production.

Completely watertight and IP66/IP67-compliant, IndiTop prevents water condensation and the penetration of dust, water and other particles into the unit. The unit can be hosed down with water or cleaning fluid without putting important settings at risk. This contributes to maximum hygiene and effectively eliminates problems associated with corrosion and external contamination.

Product Benefits

  • Streamlined, low-maintenance design
  • Sturdy and durable
  • Cost-effective control

Produktkatalog

Seneste 'Close at hand'-online version

Find et Alfa Laval produkt

IndiTop with stick


Sådan fungerer det

Construction

IndiTop consists of a valve indication housing, proven no-touch, set-and-forget sensor system with light-emitting diodes (LEDs) and valve control sensor board for connection to the PLC (Programming Logic Controller) system.

Operating principle

The sensor system calculates the angle between the axial magnetic field produced by an indication pin mounted on the valve stem. This provides indication with an accuracy of ± 1mm of the position of the valve at any given time through the use of microchip sensors.

The IndiTop unit transmits status and condition to any PLC system using one of two DC/AC or PNP/NPN digital feedback signals. LEDs display the current main valve position and on/off power status at all times.

Options

Three versions based on fixed cable lengths are available for connection: 5 m, 10 m or 0.5 m with an M12, 5-pin stainless steel plug connector including the plug counterpart.

Ease of installation

Installation is straightforward; no special expertise, adapters or tools are required. IndiTop fits onto all Alfa Laval sanitary actuators equipped with mushrooms. Simply press a five-button startup sequence to initiate foolproof manual setup. Or facilitate setup using the optional remote control wire function in combination with the PLC system. No dismantling is required.
