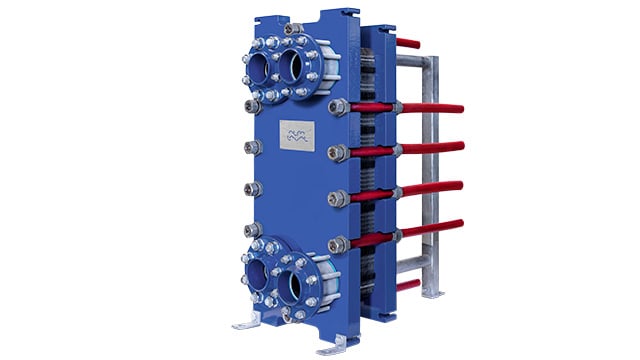

Marine semi-welded plate heat exchangers
Semi-welded plate heat exchangers are suitable for fuel conditioning duties involving alternative fuels, LPG cargo handling duties, refrigeration duties and Organic Rankine Cycle (ORC) duties. Our marine line features the unique Alfa Laval RefTight™ sealing system, which guarantees a long lifetime sealing between the welded channels because the laser weld is on the outside of the ring gasket groove. The smooth surface ensures a tight uniform seal over the entire gasket ring.
Highly efficient and flexible marine heat exchangers
- High efficiency that reduces energy consumption and OPEX
- Long service life, comparable to the vessel lifetime
- Serviceable without hot work, protecting uptime
- Easy maintenance on board through CIP or mechanical cleaning
- Extendable capacity through the addition of plates
Alfa Laval’s marine semi-welded plate heat exchangers are available for a broad range of temperatures and media, with operating pressures up to 65 bar. Robustly constructed, they provide exceptional longevity with their resistance to vibrations and pressure cycles. The various sizes, which cover a wide spectrum of heat transfer capacities and flows, are carefully designed and selected to achieve optimal performance. The cooling media/seawater side is fully accessible without disconnecting the semi-welded plate heat exchanger from the pipework.
Instructions and manuals
Heating and cooling in the engine room
On a ship, there are many types of machinery with a cooling demand. When the heat energy cannot be recovered or utilized, the total costs of transferring it away from the machinery should be kept to a minimum. Alfa Laval can ensure a cost-effective central cooling system through our portfolio of innovative plate heat exchangers. Our gasketed plate heat exchangers have unique features that reduce the running costs for engine room cooling – and contribute to sustainability.
Heating and cooling for LPG cargo handling
The transport of LPG requires tailored cargo handling systems. Alfa Laval marine semi-welded plate heat exchangers are the ideal choice for the cargo condenser, thanks to their very high efficiency, their small footprint and the ease of performing service on board. The robust units resist vibrations and pressure fatigue, and more plates can be added if faster loading rates are desired.
Alfa Laval Marine servicenetværk
På verdensplan og 24/7 er Alfa Laval Marine Service din vej til større oppetid, optimeret ydeevne og ægte ro i sindet. Vores netværk er altid på vagt, og vores servicetilbud bringer pålidelighed, effektivitet og overensstemmelse i hele dit udstyrs levetid.
24/7 Service & Support
Kontakt os hvor som helst, når som helst:
+46 4636 7700
For lokal hjælp inden for kontortiden:
Higher pressures demand a higher standard
If your heating and cooling duties demand higher pressures, it’s time to demand a higher standard of technology. Discover total reliability and efficient thermal performance with the Alfa Laval marine line of semi-welded plate heat exchangers.
Highly efficient with unique sealing system
Alfa Laval marine semi-welded gasketed plate heat exchangers are suitable for liquids and gases incompatible with normal gaskets or at higher pressures. They are commonly used in refrigeration applications for evaporation and condensation.
The unique Alfa Laval RefTight™ sealing system guarantees a long life-time sealing between the welded channels because the laser weld is on the outside of the ring gasket groove. The smooth surface ensures a tight uniform seal over the entire gasket ring.
What make our plate heat exchangers so reliable, efficient and serviceable?
Equipped with well-designed features that make a difference, Alfa Laval marine semi-welded plate line of heat exchangers are easy to maintain and have a long service life.
Højtydende pakningsforsegling til højtryksopgaver
Forbedrer mediets gennemløb og minimerer risikoen for forurening.
Forbedrer mediets gennemløb og den termiske effektivitet.
montering af pakning
Sikrer perfekt forsegling og problemfri vedligeholdelse.
Sikrer pålidelig pladejustering og nem vedligeholdelse af store enheder.
Giver en lavere enhed, der er nem at betjene.
How it works
The heat transfer area of a gasketed plate-and-frame heat exchanger consists of a series of corrugated plates, assembled between the frame and pressure plates, which retain the design pressure. For the highest thermal performance and to enable a very close temperature approach, fluids normally run counter-currently through the heat exchanger.

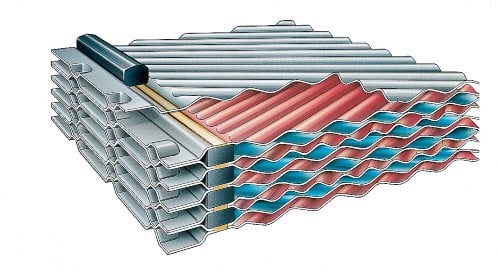

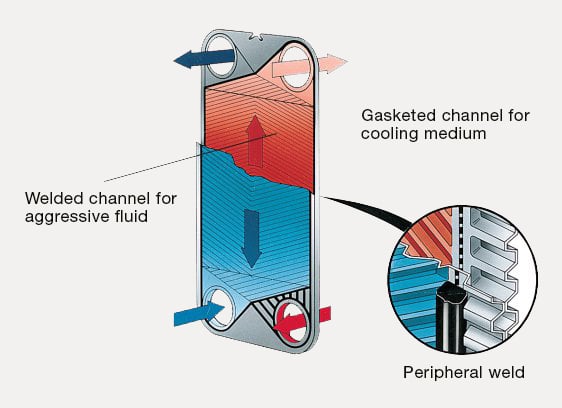

The sealing between the plates on the marine semi-welded line alternates between laser welds and gaskets. The laser welded channel allows use of fluids that are not compatible with normal gaskets and also allows for higher design pressure than fully gasketed plate-and-frame heat exchangers. Additionally, the Alfa Laval RefTight™ sealing system guarantees equal sealing force over the entire porthole gasket.
